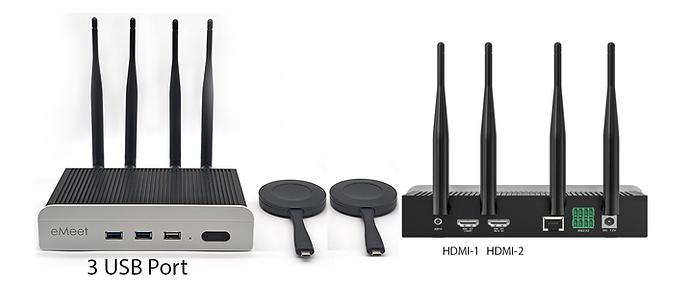

2 Button (2 Type-C USB Button)
(2.4 -5 GHZ, 1 Ethernet , Stereo Out, HDMI Out, Miracast, Google Cast, Airplay, 4 USB)
Cihaz üzerinde EM50 yazıyor.
|
Specification |
|
|
HDMI output |
1x HDMI 19-pin female connector |
|
Video Output Resolution |
3840x2160@60Hz,3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz |
|
Format Compliance |
HDMI1.4/HDMI2.0 |
|
Video Capacity: |
1080P @ ≤60Hz Airplay for IOS devices 1080P @ ≤60Hz 'WirelessMedia' app 1080P @ ≤60Hz for HDMI show-me button 1080P @ ≤60Hz for USB-C show-me button 1080P @ ≤30Hz for USB show-me button |
|
HDCP |
HDCP1.4/HDCP2.2 |
|
Analog Audio Output |
1x 3.5mm PC audio female jack |
|
LAN port |
RJ45 x2：1000Mbps x1，100Mbps x1 |
|
USB interface |
USB3.0 x3, Type-C(USB3.0) x1，USB 2.0 x1，Type-C(USB2.0) x1 |
|
USB Camera |
≤1080P@30, MJPG |
|
Audio Input |
AirPlay/Miracast/Chromecast, Windows/MAC, WMH, USB/BT SpeakPhone |
|
Audio output |
Jack, HDMI, Jack + HDMI, USB/BT SpeakPhone |
|
Control connectors |
3.5mm Phoenix terminal/ RS232 interface |
|
Number of window simultaneous on screen |
≤ 4+12（4 main windows+12 thumbnail windows） |
|
Number of simultaneous connections |
≤ 16 |
|
Video Playback Frame Rate |
20-60 FPS |
|
Latency |
＜100ms，Min 20ms |
|
WIFI Data rate |
Up to 1200Mbps |
|
Wireless transmission protocol |
WIFI IEEE 802.11 b/g/n/ac |
|
Frequency band |
2.4 GHz & 5 GHz |
|
WIFI Antenna |
MIMO 2x2 and MIMO 1x1 |
|
WIFI Encryption |
AES WPA PSK, WPA2 PSK |
|
Control method |
Web GUI, Telnet, RS232 |
|
Dimension (W x D x H) |
220 x 120 x 33 mm ( Antenna not included ) |
|
Weight |
950 g （TBD） |
|
Operating Temperature |
-4° to +113 ° F (-20° C to +45° C) |
|
storage Temperature |
-4° to +140° F (-20° C to +60° C) |
|
Relative humidity |
20%~ 85% RH（no condensation） |
|
DC Power |
12V / PoE |
|
PoE standard |
IEEE802.3af ( or IEEE802.3AT TBD) |
|
Power Consumption |
10W(MAX) (TBD) |
|
Power adapter |
AC100~240v 50/60Hz 12V/1.5A(TBD) adapter with four plug-in, US, Europe, UK, Australia |
